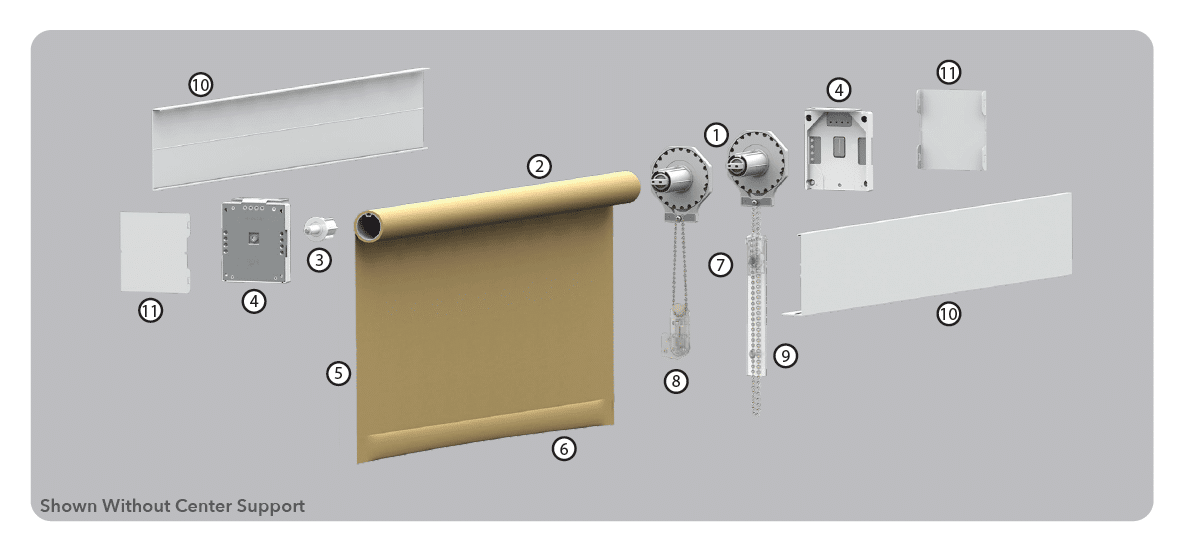

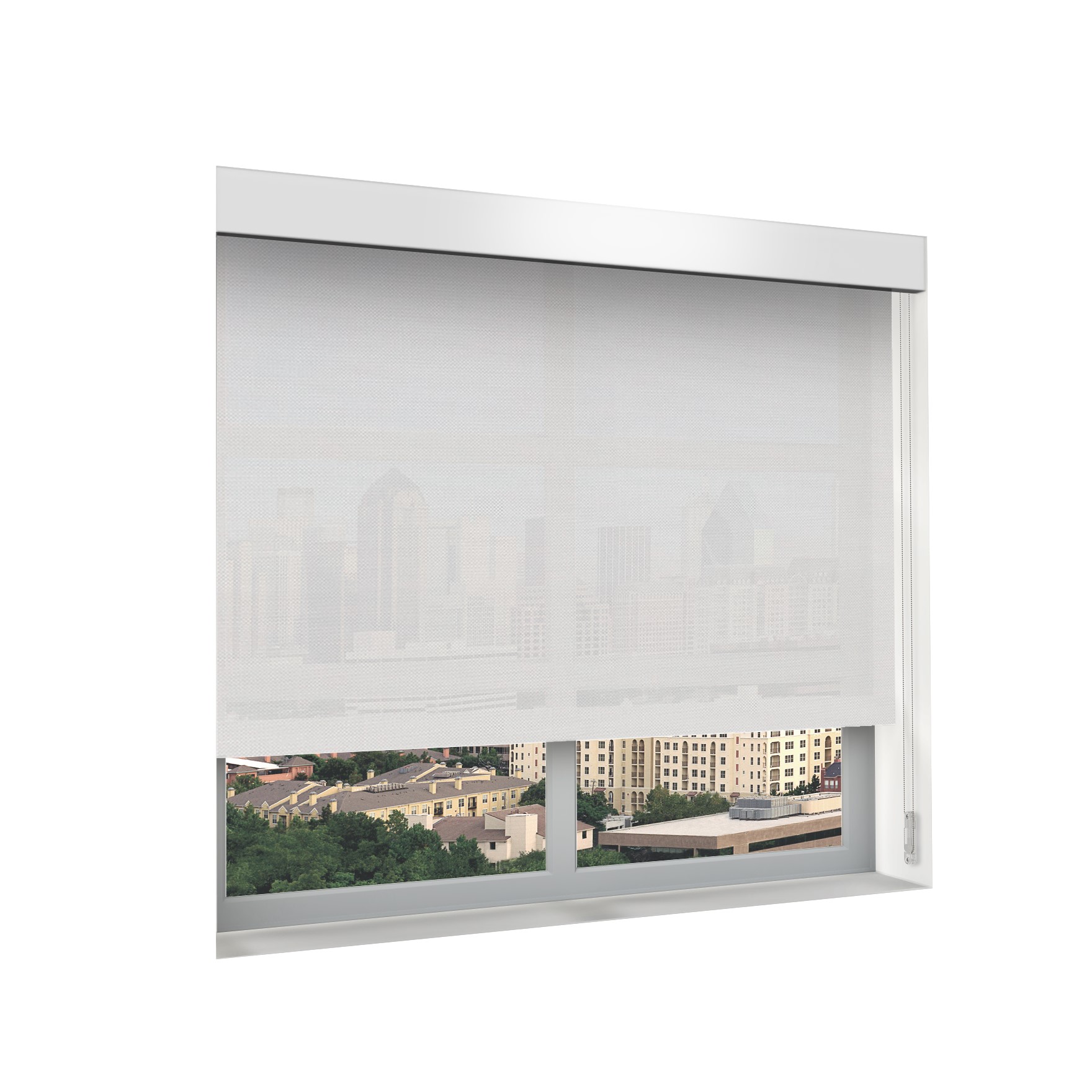

H300 SoloMount® Manual Clutch Shade

  • Brand
    Inpro WT

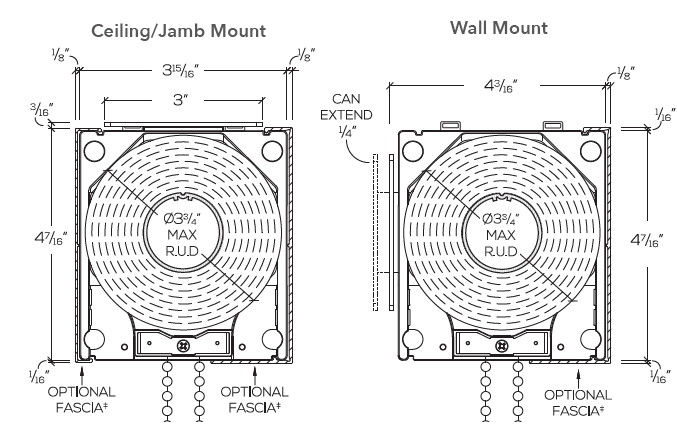

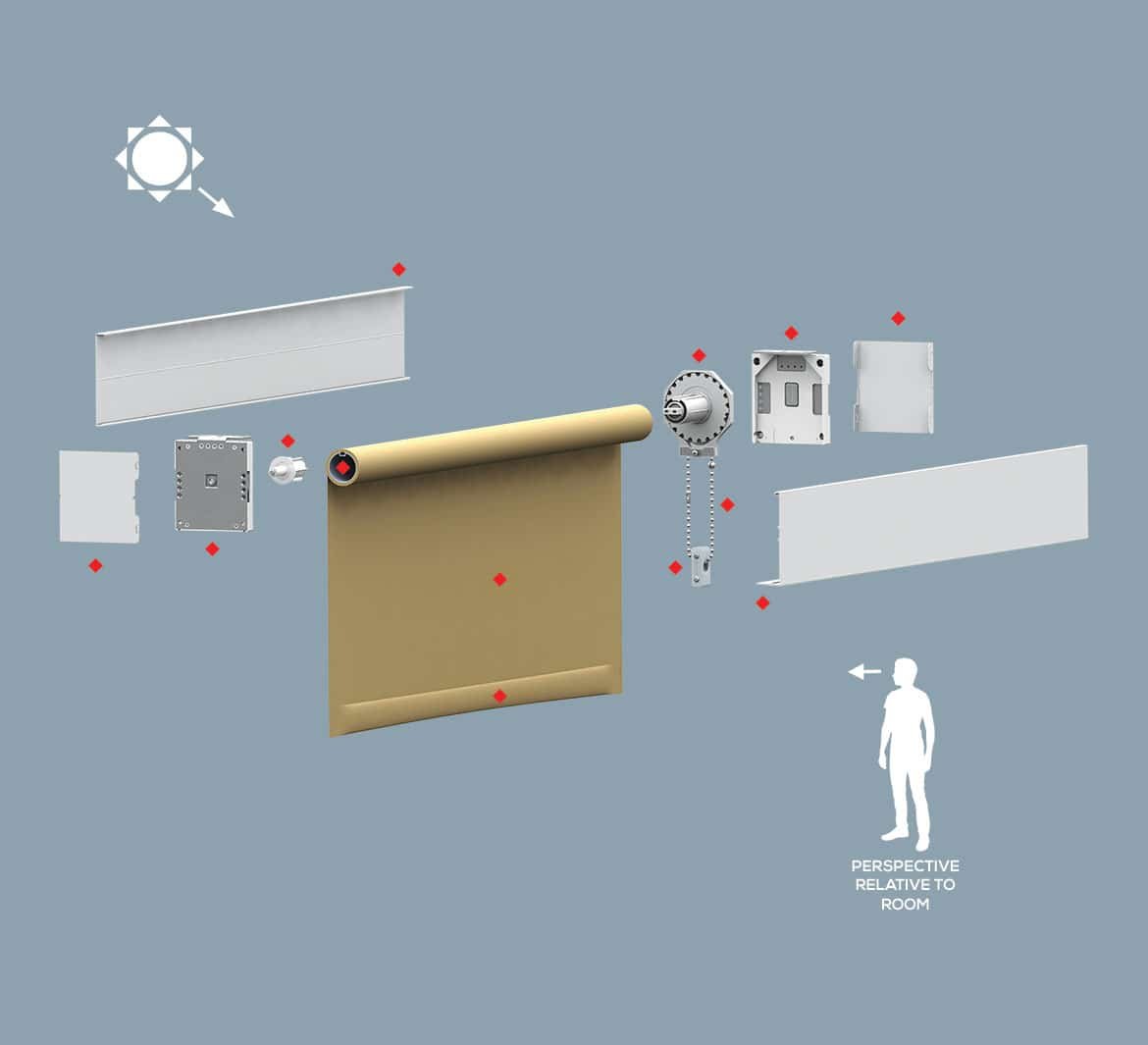

  • Featuring our proprietary, all-in-one SoloMount® Brackets: Ceiling, Wall or Jamb mount capable allowing easy, on-the-fly adjustments.
  • Mounting flange is extendable for Wall Mount applications.
  • Clutches feature an integrated stainless steel reinforced Chain Diverter and Set Screw for maximum stability, durability and added safety, and can be Drive Right or Drive Left.
  • Metal to metal contact points on both the Drive and Idle sides of the shade ensure a sturdy and reliable connection to the brackets.

Product Attributes

  • Bracket: SoloMount® Brackets in White (-10) or Black (-90)
  • Fabric Type: Our own line of Fabrics, Mermet® Fabrics or Phifer® Sheerweave Fabrics
  • Fascia: 4.5" Front and/or Rear Fascia in five colors
    • Wall Mount Angle is required for applications requiring a wall-mounted shade with Rear Fascia
  • Roll Type: Regular or Reverse Roll
  • Operator: Clutch, Drive Right or Drive Left

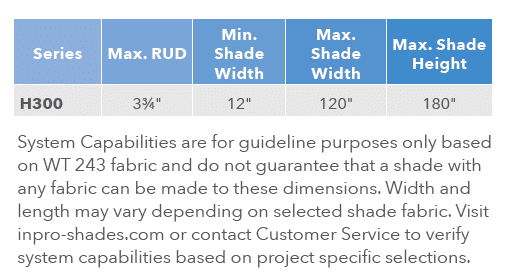

  • Width: 12" min; 120" max Length: 180" max
    • System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions.
  • Light Blocking Accessories: Side channel, Sill channel, or Light stop angle
  • Hembars: Sealed Hembar shown, alternate styles and colors available

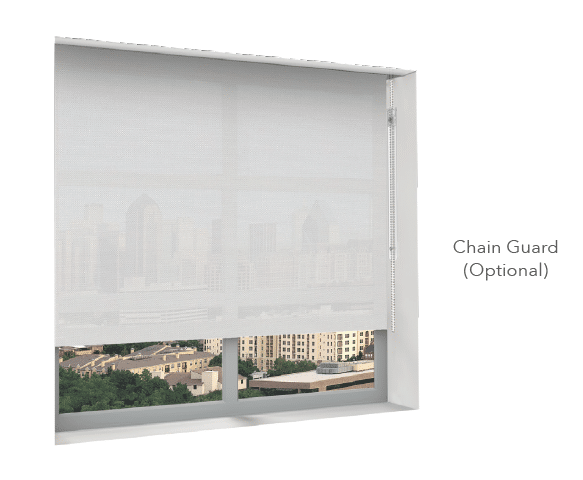

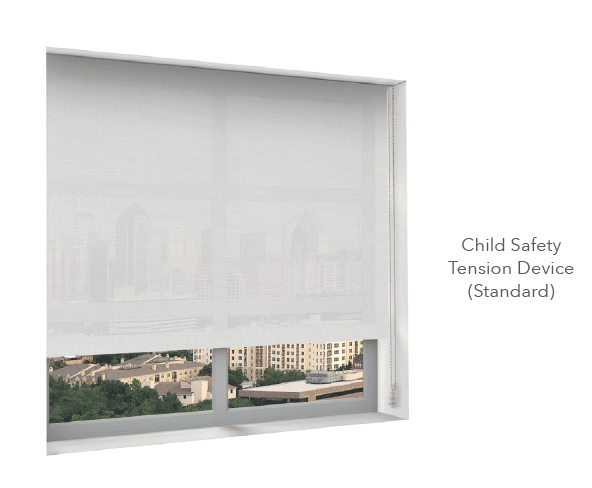

  • Safety Device: Child Safety Tension Device (ANSI/WCMA A100.1-2022 compliant.) Optional compliant Chain Guard available.
  • Chain Selection: Stainless Steel shown, alternate styles and colors available
  • Spring Assist Mechanism: Optional; may be added to decrease the pulling force necessary to operate the shade
    • Minimum shade width: 37.5"

Contact your Inpro WT Sales Rep or Customer Service to verify system capabilities based on project specific selections
