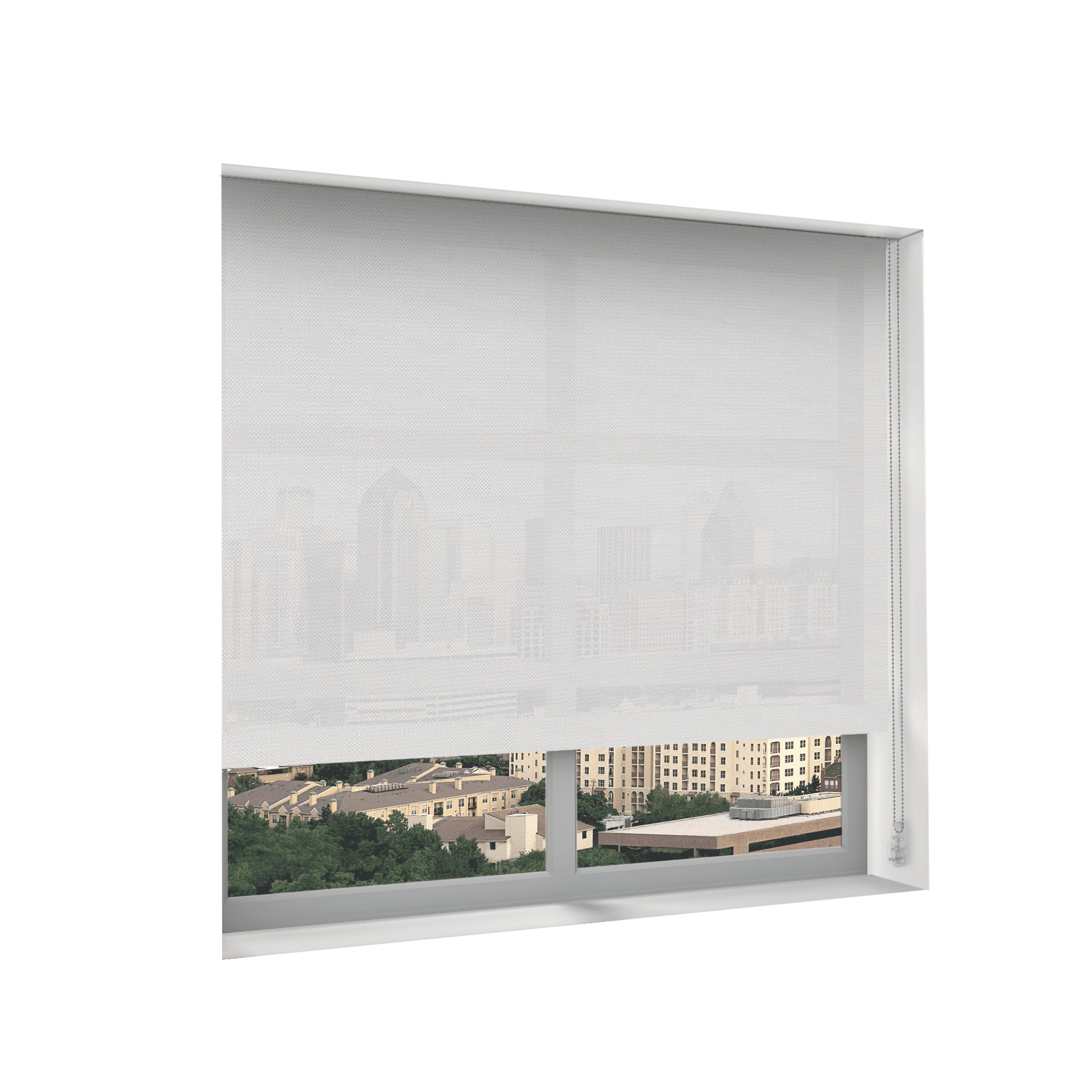

H300 Pocket Manual Clutch Shade
- Featuring our smallest profile bracket for installing in tight spaces and pockets when not using fascia.

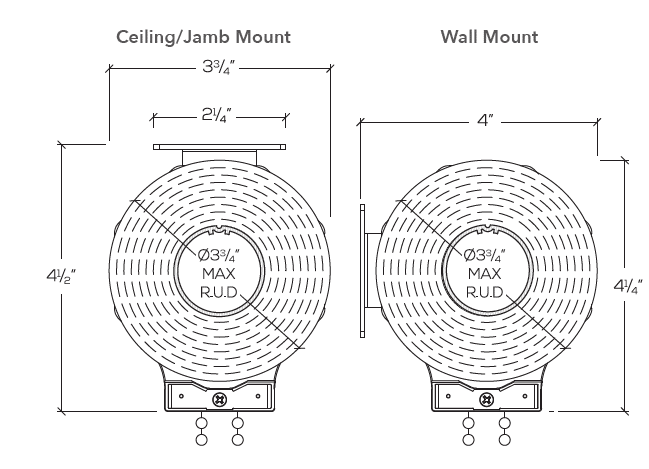

- Accommodates Ceiling, Wall or Jamb mounting with easy, on-the-fly adjustments.

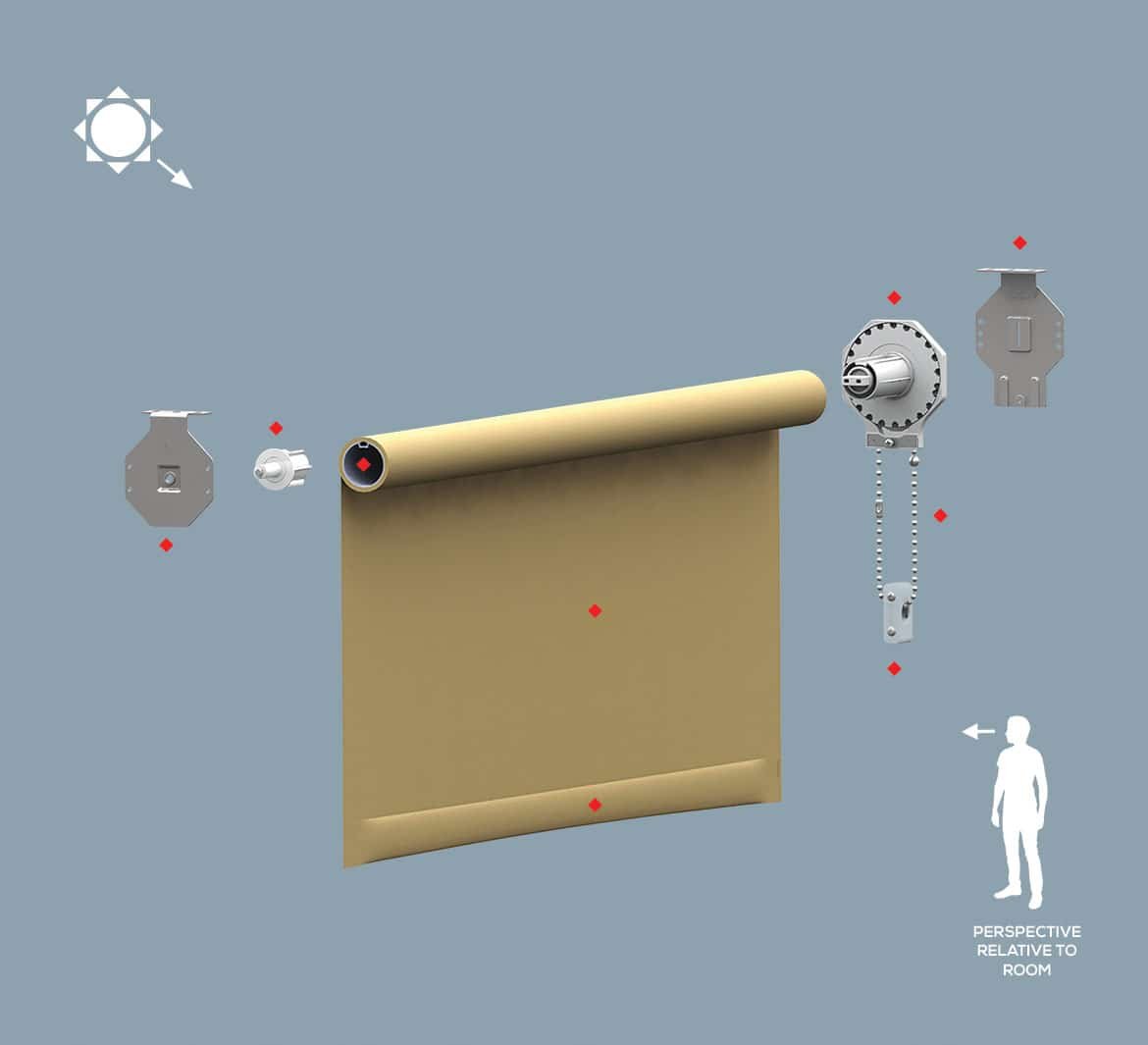

- Clutches feature an integrated stainless steel reinforced Chain Diverter and Set Screw for maximum stability, durability and added safety
- Metal to metal contact points on both the Drive and Idle sides of the shade ensure a sturdy and reliable connection to the brackets
- Coupled option available up to 3 bands
Product Attributes

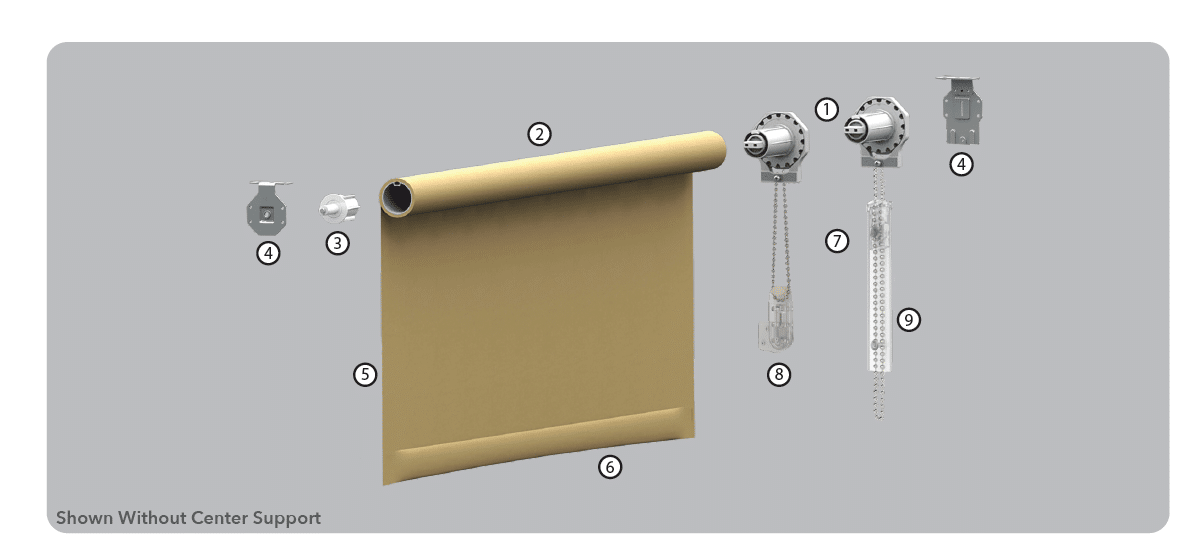

- Bracket: Pocket Brackets

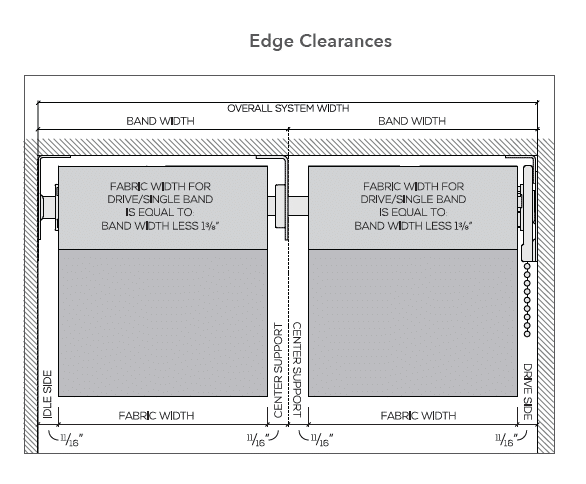

- Coupled shades require an additional Center Support Bracket (includes center support, fork, and tang)
- Fabric Type: Our own line of Fabrics, Mermet® Fabrics or Phifer® Sheerweave Fabrics
- Roll Type: Regular or Reverse Roll
- Operator: Clutch, Drive Right or Drive Left

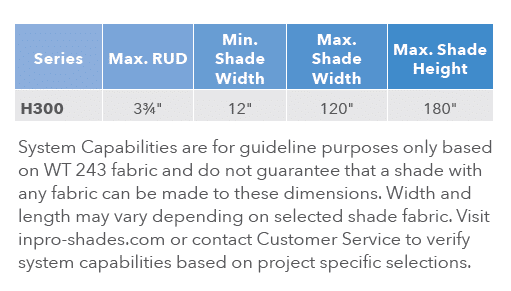

- Width: 12" min; 120" max Length: 180" max
- System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric.
- Shade Pocket: Optional; 5" x 5"
- Light Blocking Accessories: Side channel, Sill channel, or Light stop angle
- Hembars: Sealed Hembar shown, alternate styles and colors available

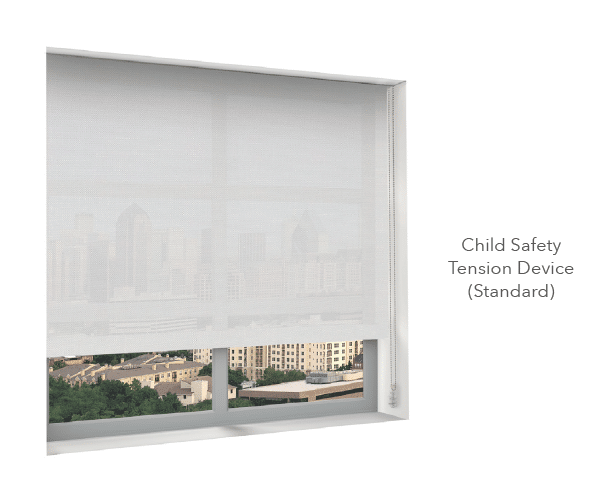

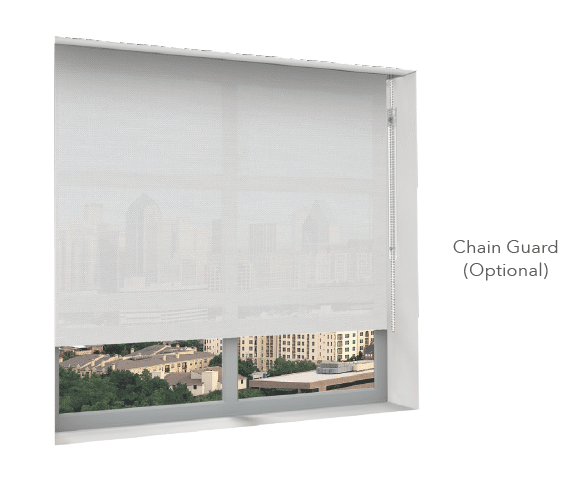

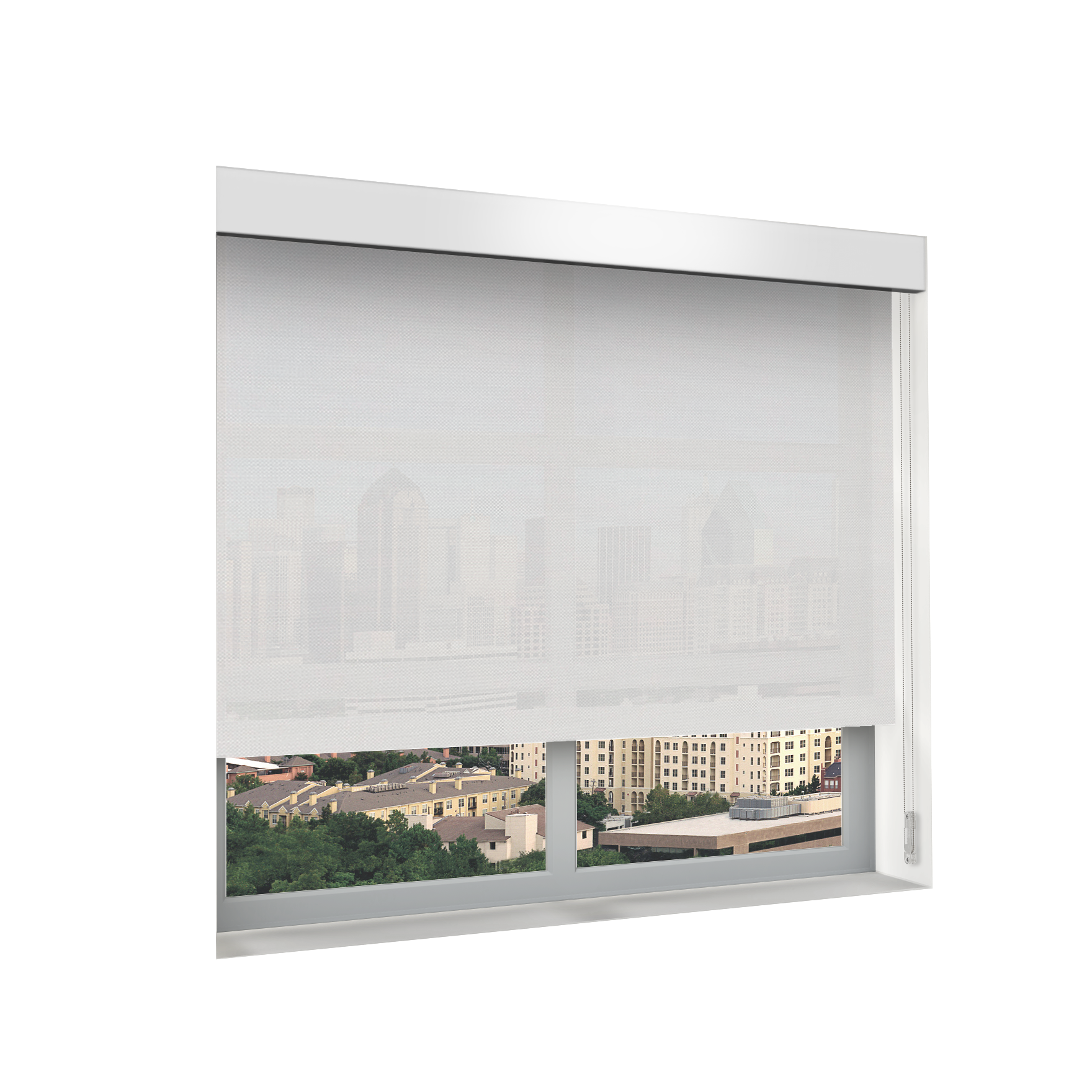

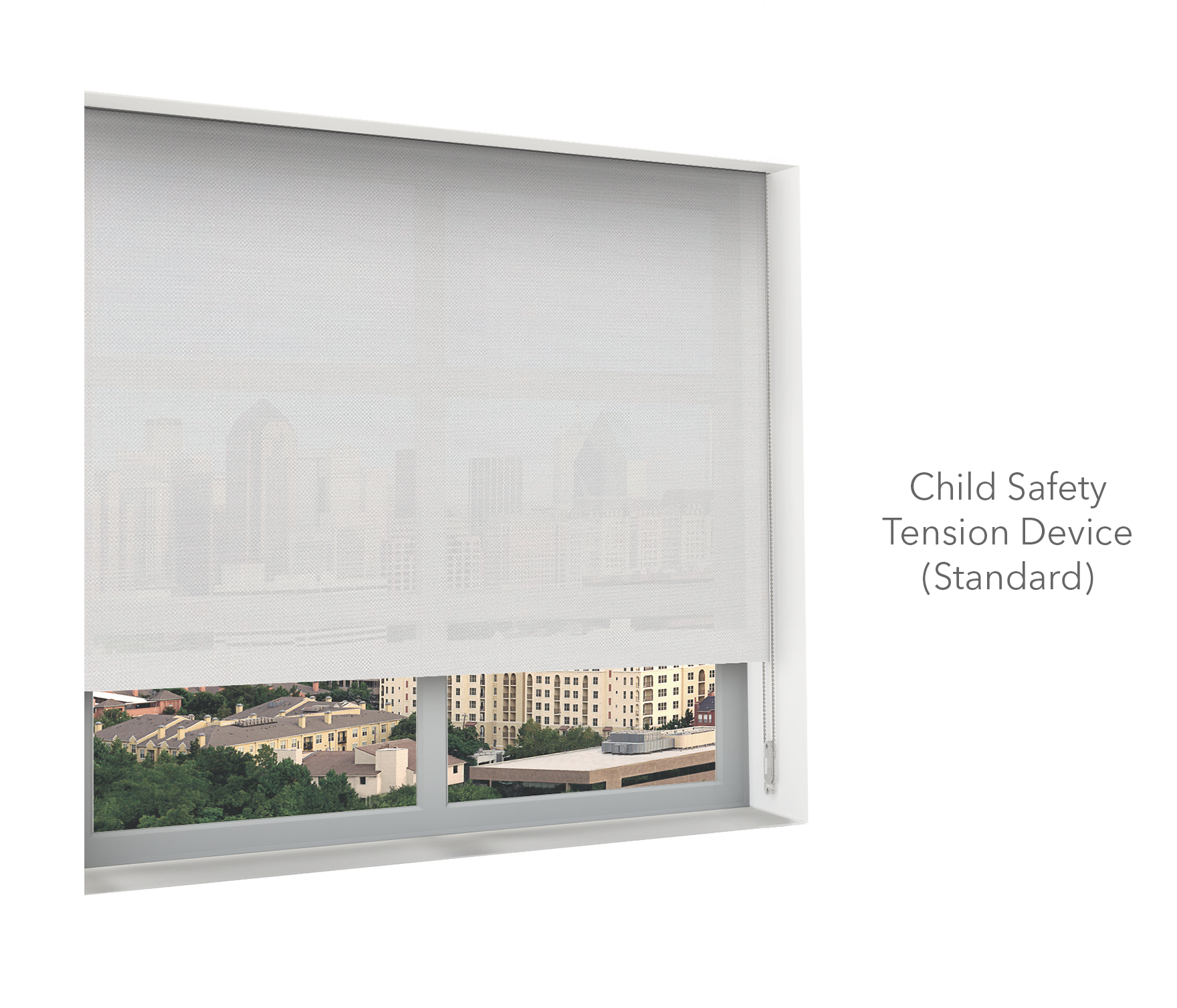

- Safety Device: Child SafeTension Device (ANSI/WCMA A100.1-2022 compliant.) Optional compliant Chain Guard available.
- Chain Selection: Stainless Steel shown, alternate styles and colors available
- Spring Assist Mechanism: Optional; may be added to decrease the pulling force necessary to operate the shade
- Minimum shade width: 37.5"
Contact your Inpro WT Sales Rep or Customer Service to verify system capabilities based on project specific selections.
