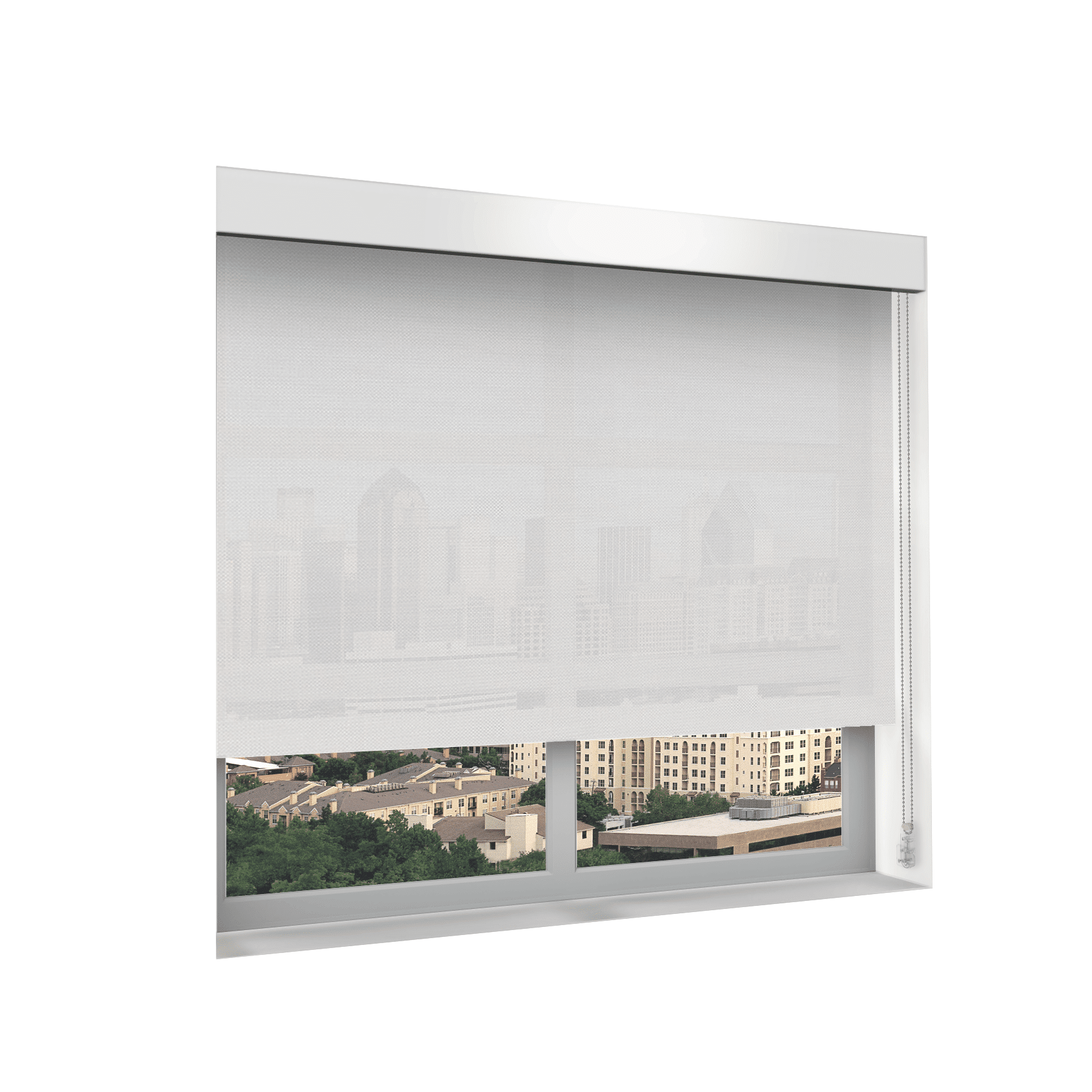

H100 SoloMount® Manual Clutch Shade

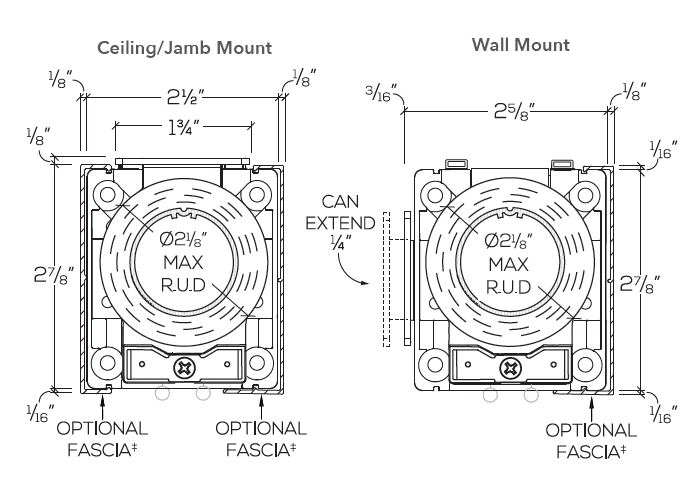

    • Featuring our proprietary, all-in-one SoloMount® Brackets: Ceiling, Wall or Jamb mount capable allowing easy, on-the-fly adjustments.
    • Mounting flange is extendable for Wall Mount applications.
    • Clutches feature an integrated stainless steel reinforced Chain Diverter and Set Screw for maximum stability, durability and added safety
    • Metal to metal contact points on both the Drive and Idle sides of the shade ensure a sturdy and reliable connection to the brackets.

    Product Attributes

    • Bracket: SoloMount® Brackets in White (-10) or Black (-90)
    • Fabric Type: Our own line of Fabrics, Mermet® Fabrics or Phifer® Sheerweave Fabrics
    • Fascia: 3" Front and/or Rear Fascia in five colors
      • Wall Mount Angle is required for applications requiring a wall-mounted shade with Rear Fascia
    • Roll Type: Regular or Reverse Roll
    • Operator: Clutch, Drive Right or Drive Left

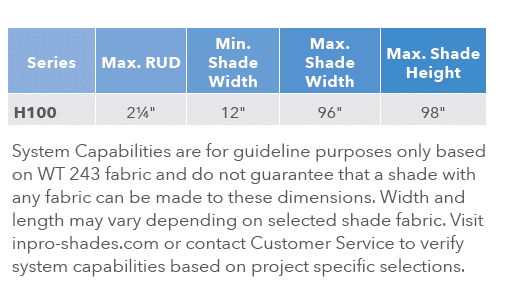

    • Width: 12" min; 96" max Length: 98" max
      • System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions.
    • Light Blocking Accessories: Side channel, Sill channel, or Light stop angle
    • Hembars: Sealed Hembar shown, alternate styles and colors available

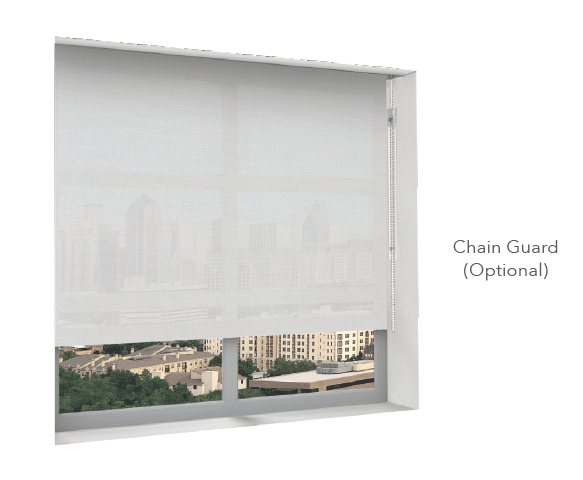

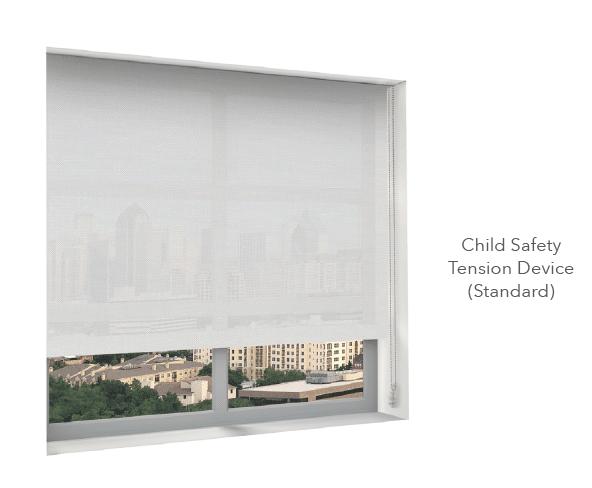

    • Safety Device: Child Safety Tension Device (ANSI/WCMA A100.1-2022 compliant.) Optional compliant Chain Guard available.
    • Chain Selection: Stainless Steel shown, alternate styles and colors available

    Contact your Inpro WT Sales Rep or Customer Service to verify system capabilities based on project specific selections.
