H100 Pocket Manual Clutch Shade

• Featuring our smallest profile Bracket for installing in tight spaces and pockets when not using fascia. Accommodates Ceiling, Wall or Jamb mounting with easy, on-the-fly adjustments.
• Regular and Reverse Roll available.
• Clutches feature an integrated stainless steel reinforced Chain Diverter and Set Screw for maximum stability, durability and added safety, and can be Drive Right or Drive Left.
• Metal to metal contact points on both the Drive and Idle sides of the shade ensure a sturdy and reliable connection to the brackets.
• Available with our WT fabrics, or Mermet® and Phifer® fabrics. Visit inpro-shades.com to view fabric options, and other options and accessories, including Regular or Reverse Roll and various Hembar styles and Drive Chain Colors.
• Construction Documents for this system and others available at inpro-shades.com.

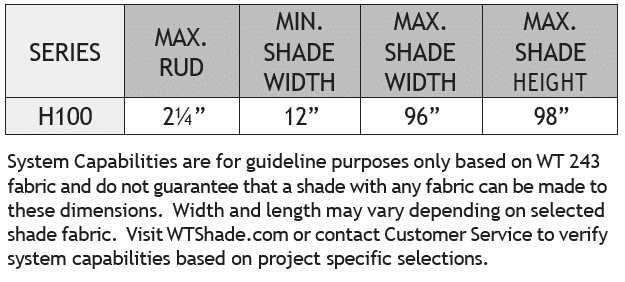

System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric. Visit WTShade.com or contact Customer Service to verify system capabilities based on project specific selections.

Product Attributes

Safety Rating:ANSI/WCMA Compliant

Shade System: H100 Pocket

Fabric Type: Our own line of Fabrics, Mermet Fabrics or Phifer Sheerweave Fabrics

Roll Type: Regular or Reverse Roll

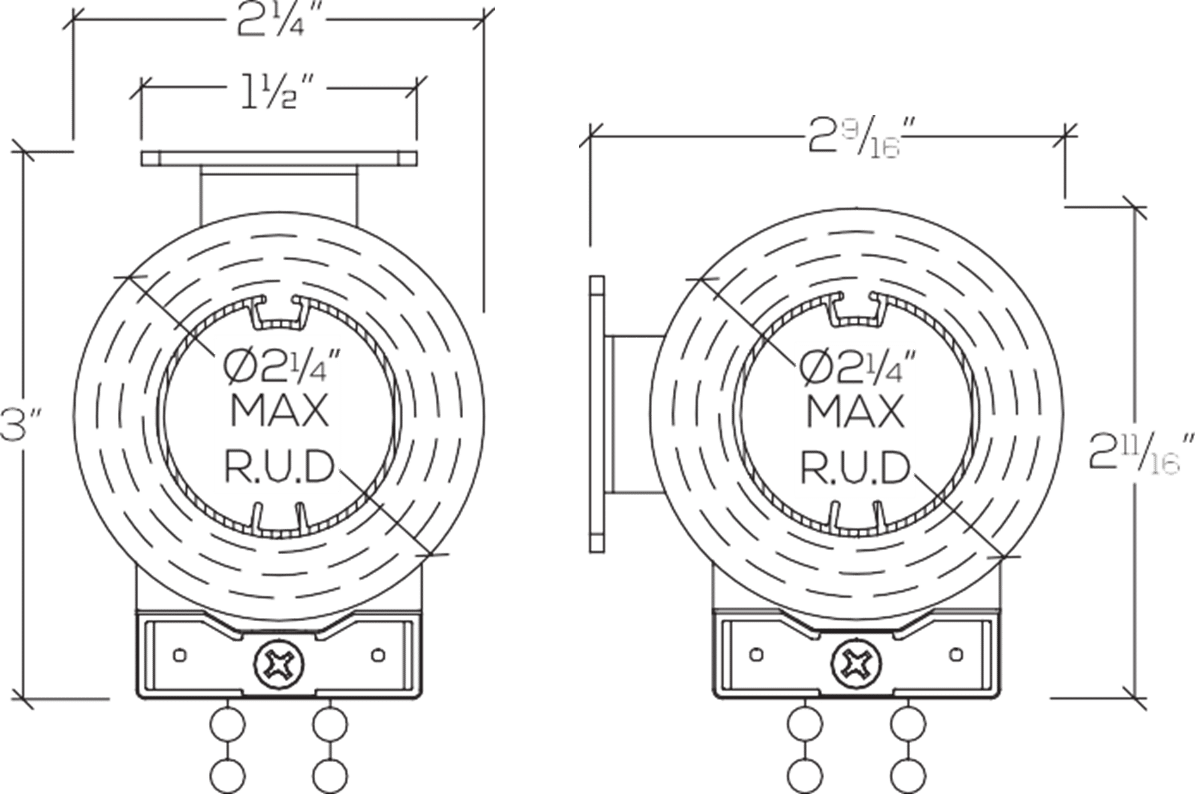

Bracket: Pocket Brackets

Operator: Clutch, Drive Right or Drive Left

Width: 12" min; 96" max

Length: 98" max

Shade Pocket: Optional; 5" x 5"

Light Blocking Acc.: Side channel, Sill channel, or Light stop angle

Hembars: Sealed Hembar shown, alternate styles and colors available

Safety Device: Child Safety Tension Device (ANSI/WCMA A100.1-2022 compliant.) Optional compliant Chain Guard available.

Chain Selection: Stainless Steel shown, alternate styles and colors available (ensure this matches image on page)
