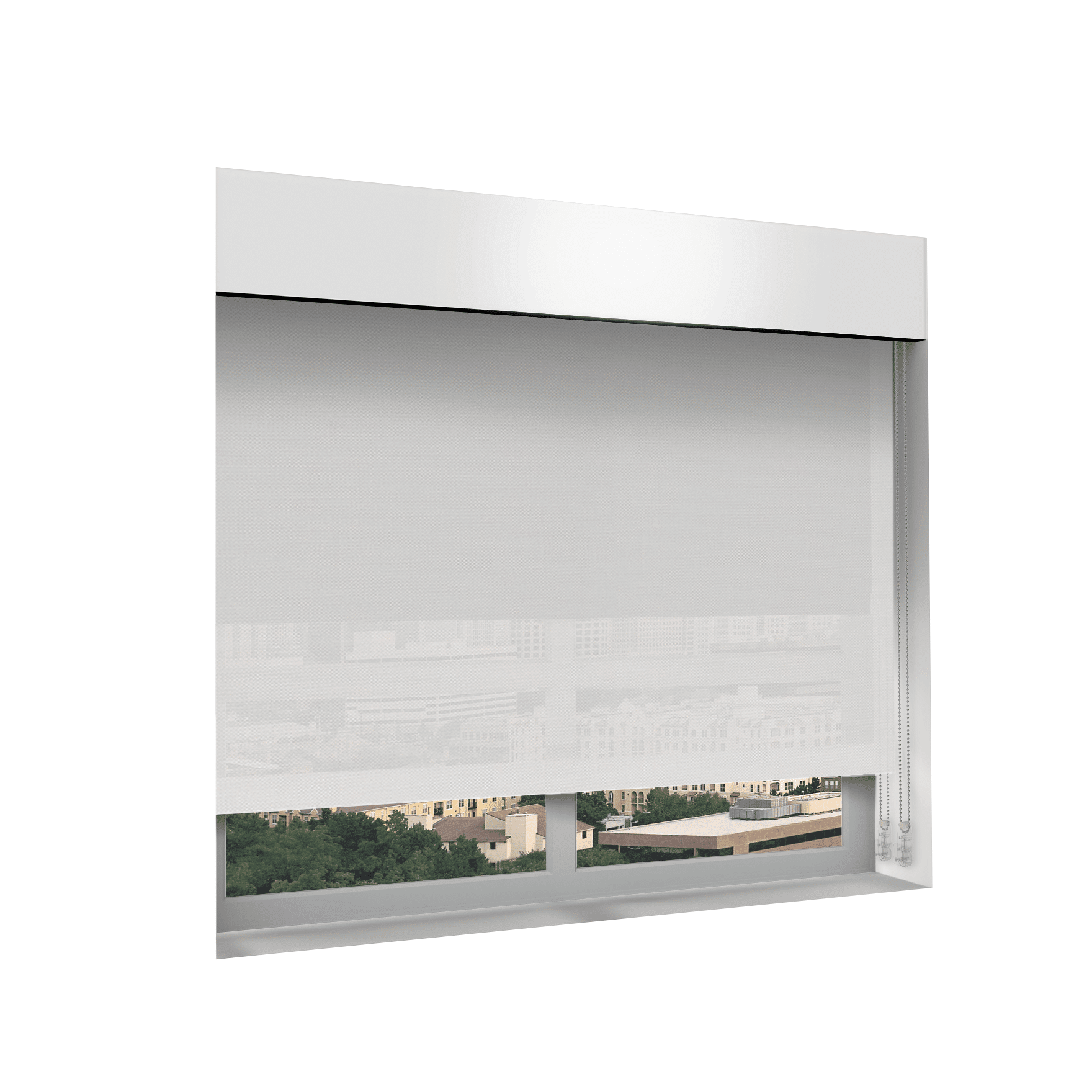

H100 Dual SoloMount® Manual Clutch Shade

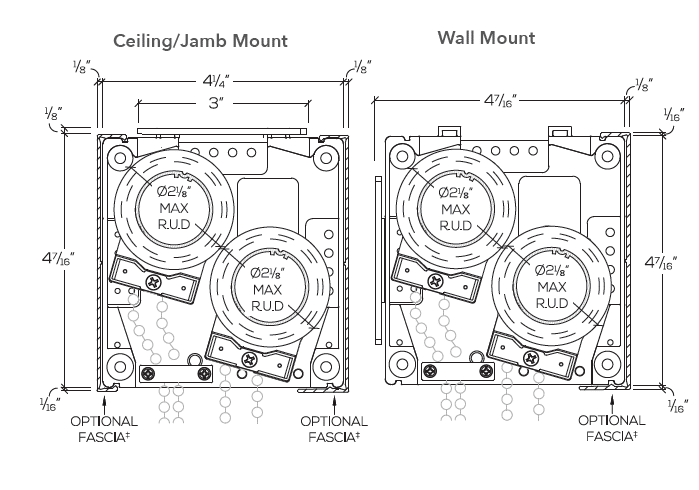

- Featuring our proprietary, all-in-one SoloMount® Brackets: Ceiling, Wall or Jamb mount capable allowing easy, on-the-fly adjustments.
- Clutches feature an integrated stainless steel reinforced Chain Diverter and Set Screw for maximum stability, durability and added safety.
- Metal to metal contact points on both the Drive and Idle sides of the shade ensure a sturdy and reliable connection to the brackets.
Product Attributes
- Bracket: SoloMount® Brackets in White (-10) or Black (-90)
- Fabric Type: Our own line of Fabrics, Mermet® Fabrics or Phifer® Sheerweave Fabrics
- Fascia: 4.5" Front and/or Rear Fascia in five colors
- Roll Type: Regular or Reverse Roll
- Operator: Clutch, Drive Right or Drive Left
- Width: 12" min; 96" max Length: 80" max
- System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions.
- Shade Pocket: Optional; 5" x 5"
- Light Blocking Accessories: Side channel, Sill channel, or Light stop angle
- Hembars: Sealed Hembar shown, alternate styles and colors available

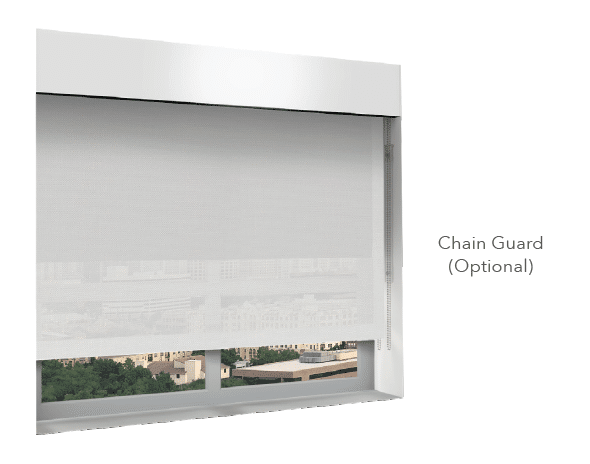

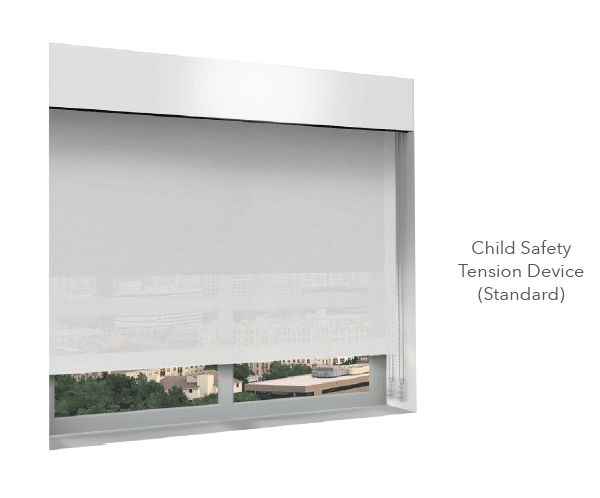

- Safety Device: Child Safety Tension Device (ANSI/WCMA A100.1-2022 compliant.) Optional compliant Chain Guard available.
- Chain Selection: Stainless Steel shown, alternate styles and colors available
Contact your Inpro WT Sales Rep or Customer Service to verify system capabilities based on project specific selections
